LED DEFINITION

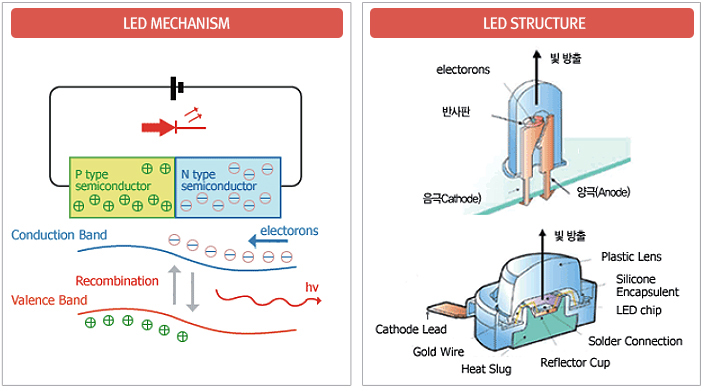

LED is a compound semiconductor using electroluminescence which is a phenomenon that monochromatic light is emitted when supplying forward voltage to P-N junction as a semiconductor light source that transform electric energy to light energy.
There are GaAs, GaAsP, GaP, CaN as a substance to be a material of LED.

Induction lamp vs LED



Incandescent lamp Halogen lamp Fluorescent lamp Metal haloid lamp LED
Efficiency(lm/W) 10~15 15~20 56 120 80
PF 0.08 0.10 0.7 0.8 0.9 over
Lifesapn(hr) 2,000 4,000 10,000 12,000 50,000
Color rendition 90 80~90 70 75 70
Heat generating temperature(H/S) 100¡É over 100¡É over 80~90¡É 300~400¡É 45¡É
UV rays /
Infrared rays
Infrared rays Infrared rays UV rays Infrared rays None
Mercury content None None 25mg 30mg None
Shock hazard ELB needed ELB needed ELB needed ELB needed None(Low power)
